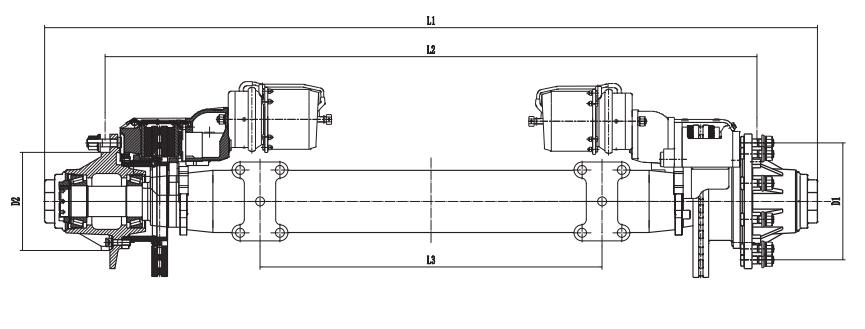

Disc brake axle technical parameter table
Disc brake axle technical parameter table
车轴型号Axle Type
|
额定负荷MaxCapacity (T) |
轮距SP (含 钢圈） Track (mm)L2 |
制动器规格Brake Size(mm) | 板簧座中心距Center Distance Of Spring SeatL3(mm) |
轴管规格（含厚度) Axle Tube(mm) | 轮毂轮辋连接Wheel Fixing |
最大外形长度totalLengthL1 (mm) |
推荐使用钢圈Wheel Rim is recom-mended to use |
车轴重量Weight(Kgs) |
轴承Bearing | ||
轮毂螺栓Studs | 分布圆D1 (mm) P.C.D | 中心孔直径 D2(mm)HoleDiameter | ||||||||||
SLPSD10YAP1CC
| 10 | 1840 | Φ430×45
| ≥980
| Ø127×16
| 10-M22×1.5 ISO
| 335
| 281 | 2186 | 7.5V-22.5
| 356
| |
SLPSD13YAP2CC
| 13 | 1840 | Φ430×45
| ≥980
| Ø127×16
| 10-M22×1.5 ISO
| 335
| 281 | 2186 | 7.5V-22.5
| 364 | |
SLPSD10FBP1CC
| 10 | 1840
| Φ430×45
| ≥980
| 150×150×10
| 10-M22×1.5 ISO
| 335
| 281 | 2186 | 7.5V-22.5
| 378 | 外轴承 518445/10 内轴承 518445/10
|
SLPSD13FBP2CC
| 13 | 1840 | Φ430×45
| ≥980
| 150×150×12
| 10-M22×1.5 ISO
| 335
| 281 | 2186 | 7.5V-22.5
| 398 | |
