American axle

  • American-style car center axle axle

American-style car center axle axle

American-style car center axle axle

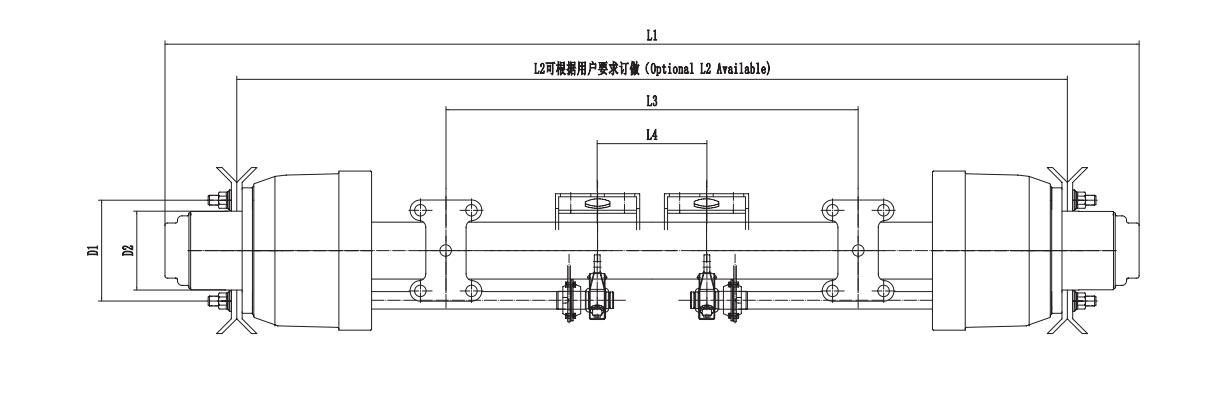

车轴型号Axle Type

额定负荷Max Capacity
(T)

轮距SP (含
钢圈) Track (mm) L2

制动器规格Brake Size (mm)

板簧座中心距Center
Distance Of Spring Seat L3(mm)

轴管规格(含厚度) Axle Tube(mm)

气室间距GM Center Distance of Brake Chamber L4
(mm)

轮毂轮辋连接Wheel Fixing



最大外形长度total Length L1
(mm)



推荐使用钢圈Wheel Rim is recom- mended to use

车轴重量Weight (Kgs)

轴承Bearing

轮毂螺栓Studs

分布圆D1
(mm)
P.C.D

中心孔直径 D2 (mm)Hole Diameter

SLD11.5YA01A1AB



11.5

1850

Φ311×190

≥950

Ø127×16

270

10-M22×1.5 ISO

225

176

2166

6.5-15

17.5×6.75



275

212049/11

内轴承

外轴承 (T) L2 L3(mm) (mm)

218248/10



SLD11.5YA01A1CC



11.5

1850

Φ311×190

≥950

Ø127×16

270

10-M22×1.5 ISO

225

176

2166

6.5-15

17.5×6.75



266

外轴承518445/10

内轴承 内轴承

33213

518445/10



SLD11.5YA01A1BB



11.5



1850



Φ311×190



≥950



Ø127×16



270



10-M22×1.5 ISO



225



176



2166

6.5-15

17.5×6.75





266

外轴承218248/10

内轴承

218248/10
